Multifunctional Medium Waterwell Drilling Rig Machine For Foundation Construction
SNR400C drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 400m and is used for water well,monitoring wells, engineering of ground-source heat pump air-conditioner,blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.
The rig can be either crawler, trailer or truck mounted and it can be personalized according to the various customers’ requirements. The drilling machine is driven by diesel engine, and rotary head is equipped with international brand low-speed and large-torque motor and gear reducer,feeding system is adopted with advanced motor -chain mechanism and adjusted by double speed.
Rotating and feeding system are controlled by hydraulic pilot control which can achieve step-less speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
Features and advantages of
- The machine is equipped with Cummins engine or electric power as the client’s special request.
- This rig can be used by two drilling method in set covering layer and stratum soil condition.
- The rig can be either crawler, trailer or truck mounted, optional 6*4 or 6*6 heavy truck.
- Hydraulic rotary head and break in-out clamp device, advanced motor- chain feeding system, and hydraulic winch are reasonable matched.
- Conveniently equipped with air compressor and DTH hammer, it can be used to drill the hole in rock soil condition by air drilling method.
- The rig is adopted with patent technology hydraulic rotating system, mud pump, hydraulic winch, which can be work with circulation drilling method.
- Hydraulic system is equipped with separate air-cooled hydraulic oil cooler , also can install water cooler as client's optional in order to ensure hydraulic system work continuously and efficiently under the high temperature weather conditions in different regions.
- Four hydraulic support jacks can level rapidly undercarriage to ensure the drilling accuracy. The support jack extension as optional can be easy to make the rig load and unload on truck as Self-loading by itself, which save more transportation cost.
- Two-speed hydraulic regulation is used in rotating, thrusting, lifting system, which shall make drilling specification more match with well working situation.
Technical Parameters:
| Item | Unit | SNR400 | SNR400Mini | SNR400S | SNR400SL |
| Max drilling depth | m | 400 | 400 | 400 | 400 |
| Drilling diameter | mm | 105-305 | 105-325 | 105-325 | 105-325 |
| Air pressure | Mpa | 1.2-3.5 | 1.2-3.5 | 1.2-3.5 | 1.2-3.5 |
| Air consumption | m3/min | 16-55 | 16-55 | 16-55 | 16-55 |
| Rod length | m | 3 | 3 | 6 | 6 |
| Rod diameter | mm | 89/102 | 89/102 | 89/102 | 89/102 |
| Main shaft pressure | T | 6 | 4 | 4 | 4 |
| Lifting force | T | 18 | 18 | 18 | 18 |
| Fast lifting speed | m/min | 20 | 23 | 23 | 23 |
| Fast forwarding speed | m/min | 32 | 45 | 45 | 45 |
| Max rotary torque | N.m | 7000/3500 | 7000/3500 | 7000/3500 | 7000/3500 |
| Max rotary speed | r/min | 75/150 | 75/150 | 75/150 | 75/150 |
| Big secondary winch lifting force | T | － | － | － | － |
| Small secondary winch lifting force | T | 1.5 | 1.5 | 1.5 | 1.5 |
| Jacks stroke | m | 1.6 | 1.3 | 1.6 | Low jack |
| Drilling efficiency | m/h | 10-35 | 10-35 | 10-35 | 10-35 |
| Moving speed | Km/h | 3 | 3 | 3 | 5 |
| Uphill angle | ° | 21 | 21 | 21 | 21 |
| Weight of the rig | T | 9.98 | 8 | 11/10.5 | 10.5 |
| Dimension | m | 6.4*2.08*2.55 | 4*1.6*2.15 | 5.6*2.08*2.55
5.6*1.85*2.55 | 6.4*2.08*2.8 |
| Working condition | Unconsolidated formation and Bedrock |
| Drilling method | Top drive hydraulic rotary and pushing, hammer or mud drilling |
| Suitable hammer | Medium and high air pressure series |
| Optional accessories | Mud pump, Gentrifugal pump, Generator, Foam pump |
| Optional |
| Rig operation by truck or trailer or crawler | Mast extension | Breakout cylinder | Air compressor |
| Centrifugal pump | Mud pump | Water pump | Foam pump |
| RC pump | Screw pump | Drill pipe box | Pipe loader arm |
| Opening clamp | Support jack extension | | |

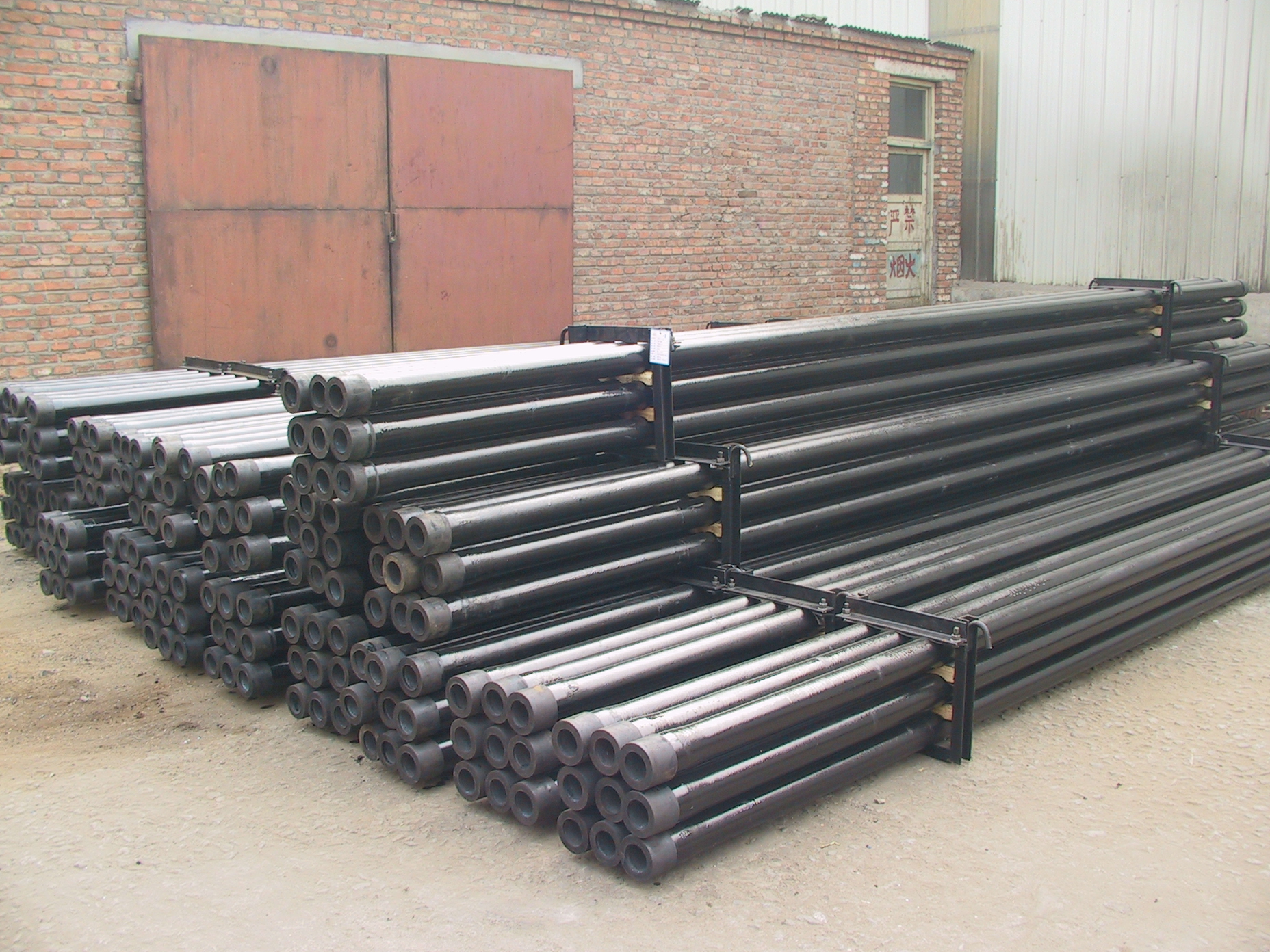

Drilling Tools:
